What You Need to Know About EV Charging Connectors

EV charging connectors are important for powering electric cars. They move energy from chargers to car batteries safely and efficiently. In 2023, AC charging connectors were most popular, with 70% use. The Asia-Pacific region had over 35% of the market, showing EV growth worldwide. Knowing about these connectors helps EV owners pick the right charger.

Key Takeaways

• Learn about the types of EV charging connectors. Knowing your connector helps you pick the right charger.
• AC charging is slower but works well at home. DC charging is faster and better for long trips. Pick based on how you charge.
• Safety is important when using EV chargers. Always check for safety labels to ensure safe charging.
• Know your EV’s connector type before traveling. This avoids problems finding chargers in new places.
• Keep up with connector updates. New tech like Tesla’s NACS is changing EV charging.

The Evolution of EV Charging Connectors

Early AC connectors and their limitations

At first, AC charging connectors were basic and simple. They worked well for slow home charging overnight. But they had big problems. They couldn’t handle high power, so charging was slow. As EVs improved, people wanted faster charging options. This led to new designs and better technology. Modern connectors were created to meet these needs.

Introduction of CHAdeMO for fast DC charging in the 1990s

In the 1990s, CHAdeMO changed EV charging. Made in Japan, it allowed fast DC charging. Cars like the Nissan Leaf and Mitsubishi MiEV used it. CHAdeMO had many benefits:

• It charged quickly with 500VDC and 125A, giving 62.5kW power.
• Charging was much faster than Level 2 AC, which added only 25 miles per hour.
• By 2008, CHAdeMO became a standard due to teamwork in the industry.

This showed how EV connectors could improve for growing EV needs.

Development of CCS and Tesla NACS for modern EVs

Today’s EVs use advanced connectors like CCS and Tesla NACS. CCS can do both AC and DC charging, making it flexible. Tesla NACS is sleek and very efficient. Tesla plans to share NACS with other carmakers. Companies like GM, Ford, and Volvo will use it soon. Tesla also plans to open 3,500 Superchargers to all EVs by 2024. These changes make charging faster and easier for everyone.

AC Charging Connector Types

Type 1 (SAE J1772)

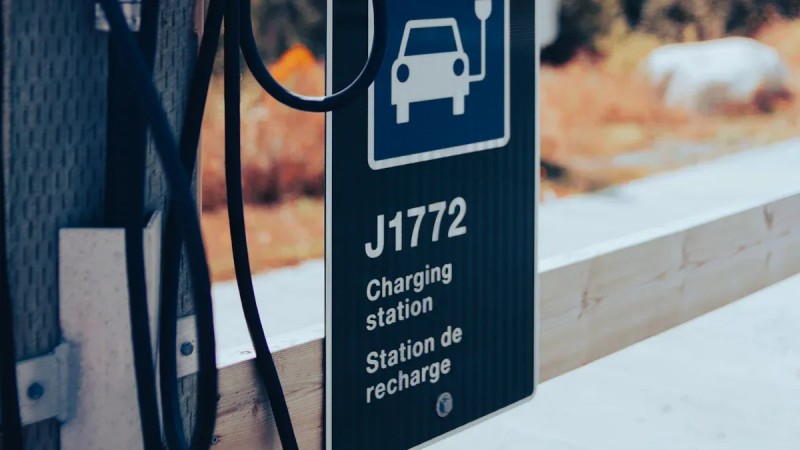

Type 1, or SAE J1772, is used in North America and Japan. Many Asian car brands use this connector. It works for Level 1 and Level 2 charging. These levels are great for home or public stations. Type 1 can deliver up to 7.4 kW of power. This makes it good for overnight charging or quick daytime top-ups.

A key feature of Type 1 is its strength. It can handle 10,000 plug-ins and removals. If you charge daily, it could last over 27 years. Safety is also important. The J1772 standard protects against shocks, even in wet weather. The pins are covered when plugged in. This stops accidental contact and ensures no power flows when unplugged.

Type 2 (IEC 62196-2)

Type 2, also called IEC 62196-2, is common in Europe. Most European EVs have Type 2 inlets. This makes them work with many charging stations. Type 2 supports single-phase and three-phase charging. It can deliver up to 22 kW of power, faster than Type 1 at public stations.

Type 2 connectors are very flexible. They work with different cables for various charging speeds. Many EVs include two cables for home and public use. This makes Type 2 a favorite for European EV drivers.

           Tip: Check your EV’s inlet type. Make sure it matches chargers in your area.

DC Charging Connector Types

CCS1

The CCS1 connector, or Combined Charging System Type 1, is common in North America. It combines both AC and DC charging in one port. This makes it useful for different charging needs. Many EVs from American and Asian brands use this connector.

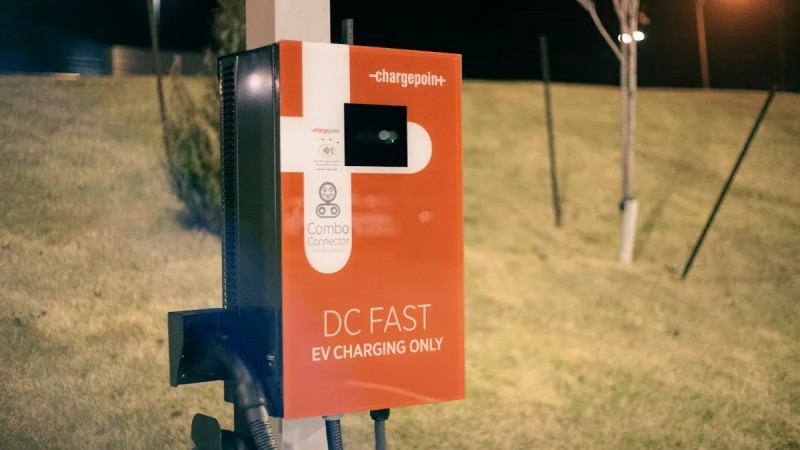

CCS1 allows fast charging with up to 500 Amps of power. This helps reduce charging time, which is great for long trips. Its design includes features like LED lights and flexible cable exits. These make it easy and convenient to use. It is also very durable, handling 10,000 uses and tough conditions.

           Tip: If you own an EV in North America, check if it supports CCS1. This will give you access to many charging stations.

CCS2

CCS2, or Combined Charging System Type 2, is mainly used in Europe. It combines AC and DC charging in one connector. This makes it work with most European EVs. It supports single-phase and three-phase AC charging, plus high-power DC charging.

The need for CCS2 is growing as EV technology improves. High-power stations with CCS2 can charge cars in 15 to 30 minutes. Cooling systems in these chargers make them even more efficient. This makes CCS2 great for large vehicles and commercial fleets.

Note: CCS2 is becoming the main standard in Europe. It’s a good choice if you plan to drive across the continent.

CHAdeMO

CHAdeMO, short for “CHArge de MOve,” started in Japan and is still popular for fast DC charging. It provides up to 62.5 kW of power and supports bidirectional charging. This means your EV can send energy back to the grid or power your home.

Even though CCS connectors are more common now, CHAdeMO is still in use. Cars like the Nissan Leaf rely on this connector. It will likely remain available until at least 2035, especially in Japan and parts of Europe.

Did you know? CHAdeMO’s bidirectional charging was one of the first of its kind. It helps create smarter energy systems for the future.

Other EV Connector Types

Tesla (NACS)

The Tesla NACS connector is unique in EV charging. It is smaller than CCS, helping carmakers design flexible vehicles. This connector works with both AC and DC charging. It can deliver up to 250 kW of power. Tesla’s Supercharger network mainly uses NACS, but brands like GM, Ford, and Volvo will adopt it by 2025.

NACS has many benefits:

• Charging Efficiency: It charges with less energy loss.
• Cost Benefits: Its simple design lowers production costs.
• Compatibility: It uses the same communication system as CCS, so it works with many EVs.

Tesla plans to let non-Tesla EVs use its Superchargers. This will likely make NACS more popular. But, older stations and systems may need updates to support this change.

          Did you know? By 2024, Tesla will upgrade 3,500 Superchargers for non-Tesla EVs.

GB/T

The GB/T connector is China’s standard for EV charging. It supports both AC and DC charging. DC charging can go up to 237.5 kW, while AC reaches 7.4 kW. Unlike other connectors, GB/T has separate ports for AC and DC. This makes it simpler but takes more space on cars.

GB/T connectors follow strict safety rules. These include fire tests, insulation checks, and environmental tests. The table below lists some key standards:

China’s use of GB/T ensures all chargers work across the country. It also supports bidirectional charging. This lets EVs send power back to the grid.

         Tip: If you drive an EV in China, make sure it supports GB/T for easy charging.

How to Choose the Right EV Charging Connector

Vehicle compatibility and regional standards

To pick the right EV connector, know your car’s needs. Different areas use different connector types. In North America, CCS1 and Type 1 are common. Europe mostly uses CCS2 and Type 2 connectors. Tesla cars usually come with the NACS connector. Tesla is also updating its Superchargers to work with other EVs. This makes NACS more useful for all drivers.

Before buying a charger or traveling, check your car’s connector type. This helps you find chargers that match your EV. Many carmakers offer charts to show which connectors fit their vehicles. These charts can save you from making mistakes.

Tip: Always check connector types before long trips, especially across regions.

Charging needs: home vs. public charging

Your charging habits affect which connector you need. Most EV owners charge at home, which is cheaper and easier. Home charging makes up 75% of all EV charging. Maintenance costs are low, only 2% of equipment costs. Public charging is just 10% of total charging but is key for long trips.

Efficiency depends on the charger type. Home AC chargers are almost 100% efficient. Public DC fast chargers are about 92.1% efficient. If you mostly charge at home, Type 1 or Type 2 connectors work well. For road trips, choose an EV that supports fast DC connectors like CCS or CHAdeMO.

Did you know? Public chargers wear out faster, costing more to maintain than home chargers.

Importance of safety certifications

Safety is very important when choosing EV connectors. Badly installed chargers can overheat or cause fires. To stay safe, hire a professional to install your charger.

Look for certifications like UL 60730-1. This ensures the charger is safe and reliable. Certified chargers follow strict rules to avoid problems, even under heavy use. Using certified equipment protects your car and home from harm.

Note: Certified chargers not only keep you safe but also last longer.

EV charging connectors are key to powering electric cars safely. They move energy to match your car’s needs and help the EV world grow. Picking the right connector means knowing your car, charging habits, and safety rules.

Charger availability differs worldwide. On average, there are 10 EVs per charger globally. In the U.S., there are 24 EVs per charger. Korea has the best public charging power, with 7 kW per EV. These facts show why choosing the right connector is important for easy charging.

 Tip: Check your EV’s connector type and local chargers before trips.

FAQ

What is the difference between AC and DC charging?

AC charging is slower and uses alternating current. It’s great for home use. DC charging is faster and uses direct current. It’s better for public stations or long trips. EVs store DC power, so AC gets converted first. DC chargers skip this step, saving time.

Can I use any connector for my EV?

No, your EV needs a specific connector type. This depends on your car and location. For example, CCS1 is common in North America. Europe mostly uses CCS2. Check your car’s manual or charging port to find the right connector.

How do I know if a charger is safe to use?

Look for safety labels like UL or CE on chargers. These show the charger meets safety rules. Don’t use damaged or uncertified chargers. If unsure, ask a professional or your EV maker for advice.

Is it okay to charge my EV in the rain?

Yes, EV chargers are made to work safely in wet weather. They have waterproof designs to stop shocks. Still, make sure the port and connector are dry before charging. This adds extra safety.

How often should I charge my EV?

Charge your EV based on how much you drive. For short trips, charge every few days. Long trips may need more frequent charging. Don’t let the battery drop below 20% often. Avoid charging to 100% daily to keep the battery healthy.

Tip: Use your EV’s app to track battery levels and charging habits.
