The Difference Between Inverter Cables and Regular Power Cables

1. Introduction

• Importance of choosing the right cable for electrical systems
• Key differences between inverter cables and regular power cables
• Overview of cable selection based on market trends and applications

2. What Are Inverter Cables?

• Definition: Cables specifically designed for connecting inverters to batteries, solar panels, or electrical systems
• Characteristics:
  • High flexibility to handle vibrations and movement
  • Low voltage drop to ensure efficient power transmission
  • Resistance to high current surges
  • Enhanced insulation for safety in DC circuits

3. What Are Regular Power Cables?

• Definition: Standard electrical cables used for general AC power transmission in homes, offices, and industries
• Characteristics:
  • Designed for stable and consistent AC power supply
  • Less flexibility compared to inverter cables
  • Usually operate at lower current levels
  • Insulated for standard electrical protection but may not handle extreme conditions like inverter cables

4. Key Differences Between Inverter Cables and Regular Power Cables

4.1 Voltage and Current Rating

• Inverter cables: Designed for DC high-current applications (12V, 24V, 48V, 96V, 1500V DC)
• Regular power cables: Used for AC low- and medium-voltage transmission (110V, 220V, 400V AC)

4.2 Conductor Material

• Inverter cables:
  • Made of high-strand count copper wire for flexibility and efficiency
  • Some markets use tinned copper for better corrosion resistance
• Regular power cables:
  • Can be solid or stranded copper/aluminum
  • Not always designed for flexibility

4.3 Insulation and Sheathing

• Inverter cables:
  • XLPE (cross-linked polyethylene) or PVC with heat and flame resistance
  • Resistant to UV exposure, moisture, and oil for outdoor or industrial use
• Regular power cables:
  • Typically PVC-insulated with basic electrical protection
  • May not be suitable for extreme environments

4.4 Flexibility and Mechanical Strength

• Inverter cables:
  • Highly flexible to withstand movement, vibrations, and bending
  • Used in solar, automotive, and energy storage systems
• Regular power cables:
  • Less flexible and often used in fixed installations

4.5 Safety and Certification Standards

• Inverter cables: Must meet stringent international safety and performance standards for high-current DC applications
• Regular power cables: Follow national electrical safety codes for AC power distribution

5. Types of Inverter Cables and Market Trends

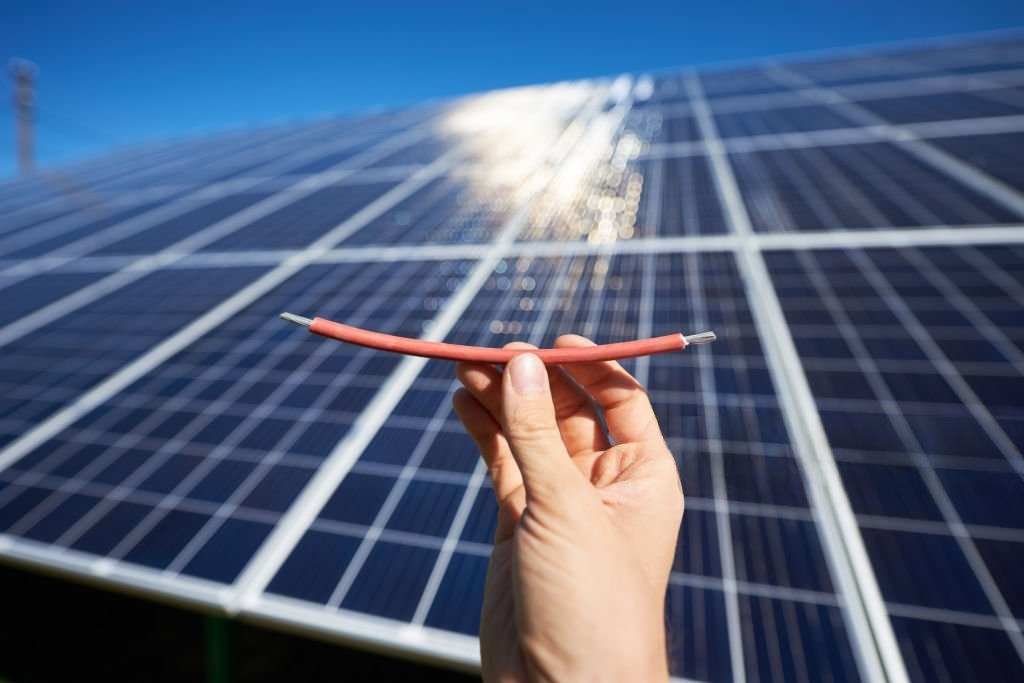

5.1 DC Inverter Cables for Solar Systems

(1) PV1-F Solar Cable

✅ Standard: TÜV 2 PfG 1169/08.2007 (EU), UL 4703 (US), GB/T 20313 (China)
✅ Voltage Rating: 1000V – 1500V DC
✅ Conductor: Stranded tinned copper
✅ Insulation: XLPE / UV-resistant polyolefin
✅ Application: Outdoor solar panel-to-inverter connections

(2) EN 50618 H1Z2Z2-K Cable (Europe-Specific)

✅ Standard: EN 50618 (EU)
✅ Voltage Rating: 1500V DC
✅ Conductor: Tinned copper
✅ Insulation: Low-smoke halogen-free (LSZH)
✅ Application: Solar and energy storage systems

(3) UL 4703 PV Wire (North American Market)

✅ Standard: UL 4703, NEC 690 (US)
✅ Voltage Rating: 1000V – 2000V DC
✅ Conductor: Bare/tinned copper
✅ Insulation: Cross-linked polyethylene (XLPE)
✅ Application: Solar PV installations in the US and Canada

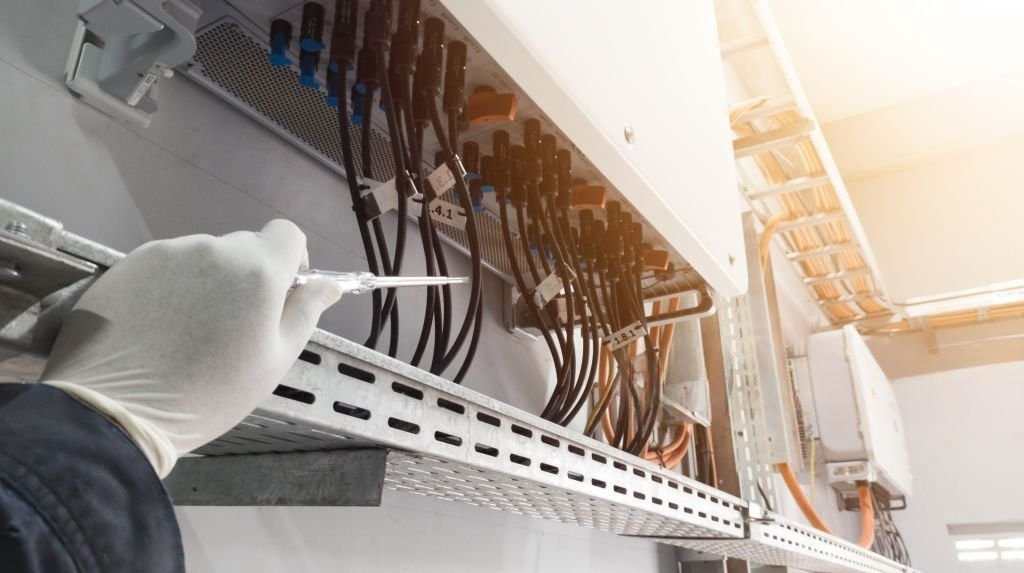

5.2 AC Inverter Cables for Grid-Connected Systems

(1) YJV/YJLV Power Cable (China & International Use)

✅ Standard: GB/T 12706 (China), IEC 60502 (Global)
✅ Voltage Rating: 0.6/1kV AC
✅ Conductor: Copper (YJV) or Aluminum (YJLV)
✅ Insulation: XLPE
✅ Application: Inverter-to-grid or electrical panel connections

(2) NH-YJV Fire-Resistant Cable (For Critical Systems)

✅ Standard: GB/T 19666 (China), IEC 60331 (International)
✅ Fire Resistance Time: 90 minutes
✅ Application: Emergency power supply, fire-proof installations

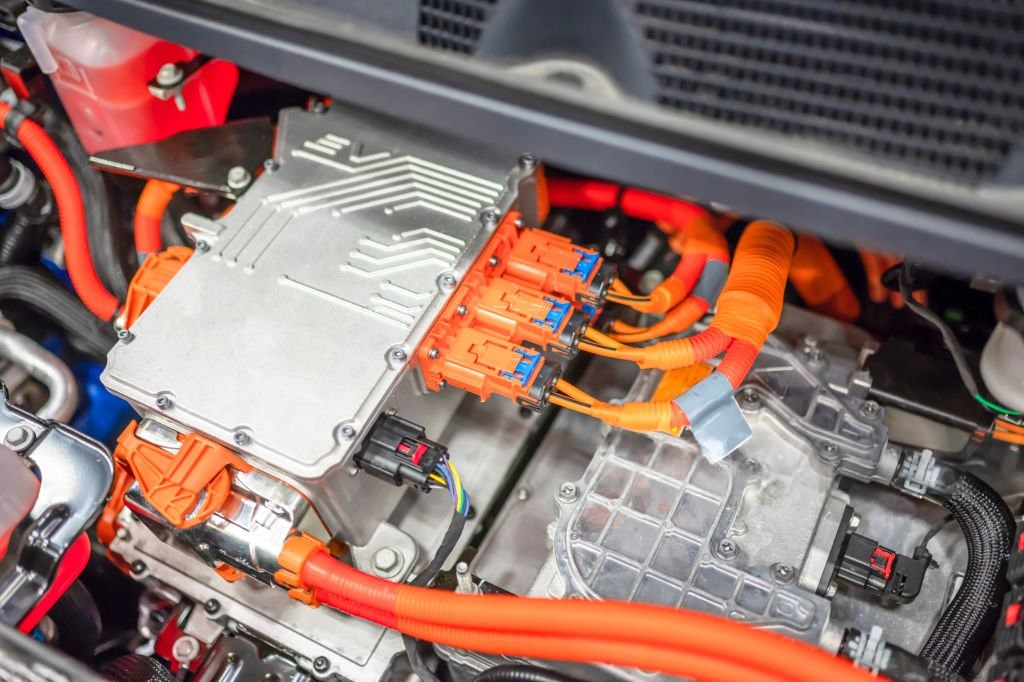

5.3 High-Voltage DC Cables for EV & Battery Storage

(1) EV High-Voltage Power Cable

✅ Standard: GB/T 25085 (China), ISO 19642 (Global)
✅ Voltage Rating: 900V – 1500V DC
✅ Application: Battery-to-inverter and motor connections in electric vehicles

(2) SAE J1128 Automotive Wire (North America EV Market)

✅ Standard: SAE J1128
✅ Voltage Rating: 600V DC
✅ Application: High-voltage DC connections in EVs

(3) RVVP Shielded Signal Cable

✅ Standard: IEC 60227
✅ Voltage Rating: 300/300V
✅ Application: Inverter control signal transmission

6. Types of Regular Power Cables and Market Trends

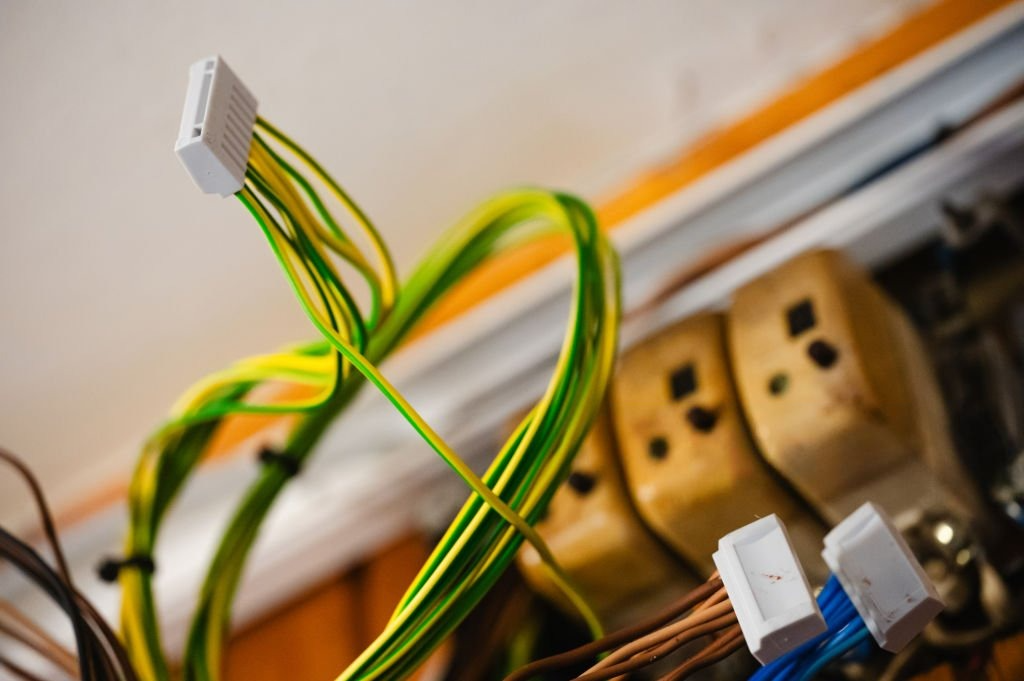

6.1 Standard Home and Office AC Power Cables

(1) THHN Wire (North America)

✅ Standard: NEC, UL 83
✅ Voltage Rating: 600V AC
✅ Application: Residential and commercial wiring

(2) NYM Cable (Europe)

✅ Standard: VDE 0250
✅ Voltage Rating: 300/500V AC
✅ Application: Indoor power distribution

7. How to Choose the Right Cable?

7.1 Factors to Consider

✅ Voltage & Current Requirements: Choose cables rated for the correct voltage and current.
✅ Flexibility Needs: If cables need to bend frequently, select high-strand flexible cables.
✅ Environmental Conditions: Outdoor installations require UV- and weather-resistant insulation.
✅ Certification Compliance: Ensure compliance with TÜV, UL, IEC, GB/T, and NEC standards.

7.2 Recommended Cable Selection for Different Applications

8. Conclusion

• Inverter cables are designed for high-voltage DC applications, requiring flexibility, heat resistance, and low voltage drop.
• Regular power cables are optimized for AC applications and follow different safety standards.
• Choosing the right cable depends on voltage rating, flexibility, insulation type, and environmental factors.
• As solar energy, electric vehicles, and battery storage systems grow, demand for specialized inverter cables is increasing worldwide.

FAQs

1. Can I use regular AC cables for inverters?
No, inverter cables are specifically designed for high-voltage DC, while regular AC cables are not.

2. What is the best cable for a solar inverter?
PV1-F, UL 4703, or EN 50618-compliant cables.

3. Do inverter cables need to be fire-resistant?
For high-risk areas, fire-resistant NH-YJV cables are recommended.
