1. Introduction
Electrical cables are everywhere. They power our homes, run industries, and connect cities with electricity. But have you ever wondered how these cables are actually made? What materials go into them? What steps are involved in the manufacturing process?
In this article, we will break it all down in simple terms. From the raw materials to the final product, we will walk you through the fascinating process of making an electrical cable.
2. What is an Electrical Cable Made Of?
An electrical cable may look simple on the outside, but it’s made using advanced technology to ensure safety, efficiency, and durability. Cables must be strong enough to carry electricity for many years without breaking down.
The main components of an electrical cable include:
- Conductors: The metal wires inside that carry electricity
- Insulation: A protective layer around the conductors to prevent short circuits
- Outer Sheath: The outermost layer that protects the cable from damage
To make high-quality electrical cables, manufacturers need skilled workers and precise machinery. Even a small defect can lead to serious problems like power failures or electrical hazards.
3. What Metals are Used in Electrical Cables?
The most common metal used in electrical cables is copper. Why? Because copper is one of the best conductors of electricity. It allows electricity to flow easily with minimal resistance.
However, in some cases, manufacturers use aluminum instead. Aluminum is lighter and cheaper than copper, making it a good alternative for large power cables, especially in overhead power lines.
Other metals may be used in special types of cables, but copper and aluminum remain the most widely used materials.
4. How Are Power Cables Made?
The process of making electrical cables is not as simple as twisting some wires together. It involves many steps to ensure that the cable is strong, safe, and reliable.
The main steps in making power cables include:
- Preparing the raw materials (metals and polymers)
- Drawing the metal wires into thin strands
- Applying insulation and protective layers
- Cooling and testing the finished cable
- Packaging and shipping the cables
Let’s take a closer look at each step.

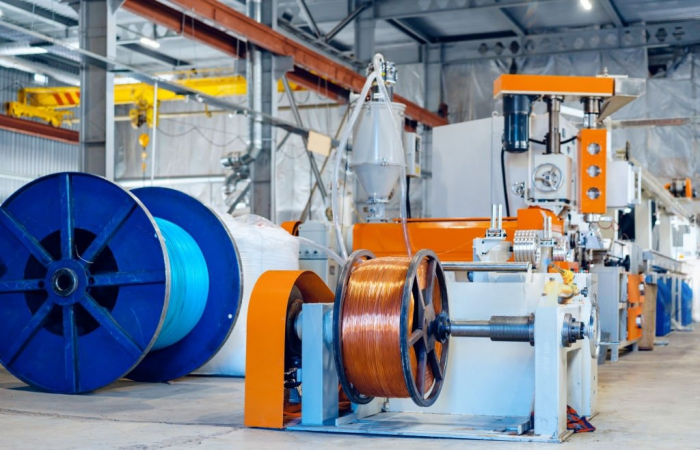

5. Steps in the Electrical Cable Manufacturing Process
5.1 Input Power Supply
Before production begins, manufacturers prepare large coils of metal wire (usually copper or aluminum). These coils are continuously fed into the production line to ensure smooth and uninterrupted manufacturing.
If the supply stops, production would have to be restarted, which can cause delays and waste materials. That’s why a continuous input system is used.
5.2 Polymer Feed
Cables are not just metal wires; they need insulation to be safe. The insulation is made from polymers, which are special types of plastic that do not conduct electricity.
To keep the process clean and efficient, manufacturers use a closed-circuit feeding system. This means the polymers are stored in a sealed environment, ensuring they remain pure and free from contamination.
5.3 Triple Extrusion Process
Now that we have the metal conductor and the polymer insulation, it’s time to put them together. This is done through a process called extrusion.
Extrusion is when melted plastic (polymer) is applied around the metal wire to form a protective layer. In high-quality cables, a triple extrusion process is used. This means that three layers of material (two protective layers and one insulating layer) are applied at the same time. This ensures a perfect bond between all layers.
5.4 Thickness Control
Not all cables are the same. Some need thicker insulation, while others need thinner layers. To ensure each cable meets the correct specifications, manufacturers use X-ray machines to check the thickness of the insulation.
If a cable is too thick or too thin, it won’t perform properly. The X-ray system helps detect any mistakes immediately, ensuring the highest quality.
5.5 Cross-Linking Process
The insulation around the wire needs to be strong and durable. To achieve this, manufacturers use a process called cross-linking.
Cross-linking is done in a nitrogen atmosphere. This means the cable is treated in a special environment to prevent moisture from getting inside. Moisture can weaken the insulation over time, so this step is crucial for making long-lasting cables.
5.6 Cooling Stage
After the cables have been insulated and cross-linked, they are still very hot. If they are not cooled properly, they might become deformed or brittle.
To prevent this, the cables go through a controlled cooling system. This system gradually reduces the temperature, ensuring that the insulation remains strong and flexible.
5.7 Collection and Spooling
Once the cables are fully processed, they are wound onto large spools. This makes it easy to transport and install them later.
The spooling process must be done carefully to avoid stretching or damaging the cable. Automatic machines are used to wind the cable evenly, loop by loop, ensuring there is no unnecessary tension.
6. Sustainability in Electrical Cable Manufacturing
Manufacturing electrical cables requires energy and raw materials, but companies are making efforts to reduce waste and minimize environmental impact.
Some key sustainability measures include:
- Recycling copper and aluminum to reduce mining
- Using energy-efficient machines to lower electricity consumption
- Reducing plastic waste by improving insulation materials
By making these changes, manufacturers can produce high-quality cables while also protecting the environment.
7. Quality Control in Cable Manufacturing
Every electrical cable must pass strict quality control tests before being sold. Some of the tests include:
- Tensile Strength Test: Ensures the cable can withstand pulling forces
- Electrical Resistance Test: Confirms the cable allows electricity to flow properly
- Heat Resistance Test: Checks if the insulation can handle high temperatures
- Water Absorption Test: Makes sure the insulation does not absorb moisture
These tests help guarantee that the cables are safe, durable, and reliable for everyday use.
8. Conclusion
Electrical cables are a crucial part of modern life, but making them is a complex and precise process. From selecting the right materials to ensuring quality control, every step is important.
The next time you see a power cable, you’ll know exactly how it was made—from raw metal to the final spool. The process may seem technical, but it all comes down to one goal: providing safe and reliable electricity for everyone.
