Understanding the Different Parts of an Electrical Cable

lectrical cables are essential components in any electrical system, transmitting power or signals between devices. Each cable consists of multiple layers, each with a specific role to ensure efficiency, safety, and durability. In this article, we will explore the different parts of an electrical cable, their functions, and how to choose the right cable for different applications.

1. What Are the Parts of an Electrical Cable?

An electrical cable typically consists of four main layers:

• Conductor: The core material that carries electrical current.
• Insulation: A protective layer that prevents electrical leakage and ensures safety.
• Shielding or Armor: Optional layers that provide protection against external interference or mechanical damage.
• Outer Sheath: The outermost layer that protects the cable from environmental factors such as moisture, heat, and chemicals.

2. Cable Conductor: The Core of Electrical Transmission

2.1 What Is a Cable Conductor?

The conductor is the most crucial part of an electrical cable, responsible for transmitting electrical current. The choice of conductor material affects the cable’s efficiency, durability, and cost.

2.2 Common Types of Conductors

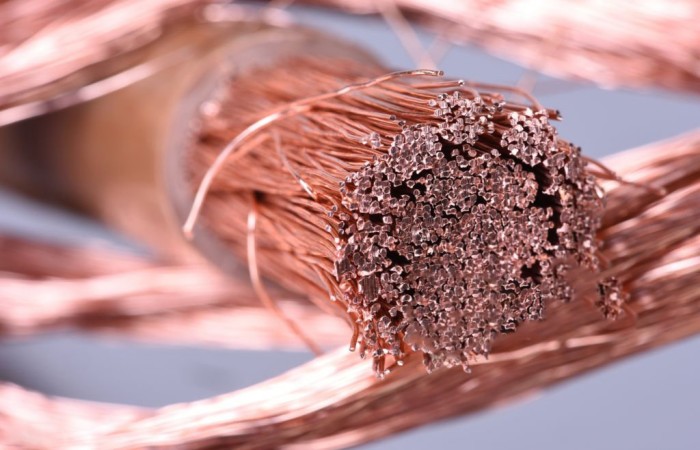

Copper Conductor

• The most widely used conductor material.
• High electrical conductivity, allowing for efficient power transmission.
• Commonly used in residential wiring, industrial applications, and electronic devices.

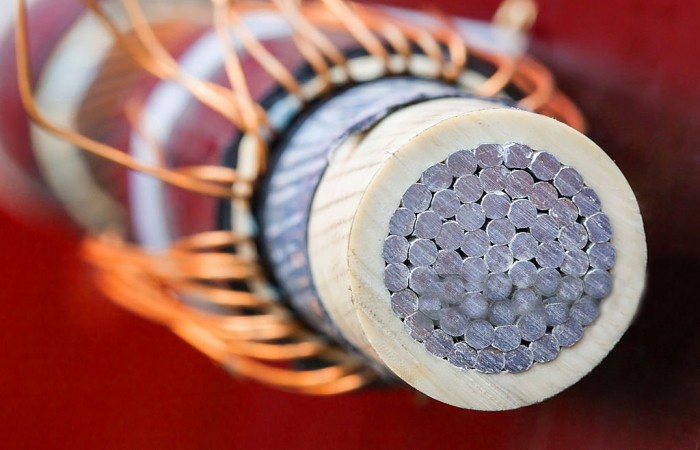

Aluminum Conductor

• Lighter and more cost-effective than copper.
• Has 40% lower conductivity than copper, meaning it needs a larger cross-section for the same current capacity.
• Commonly used in high-voltage power transmission.

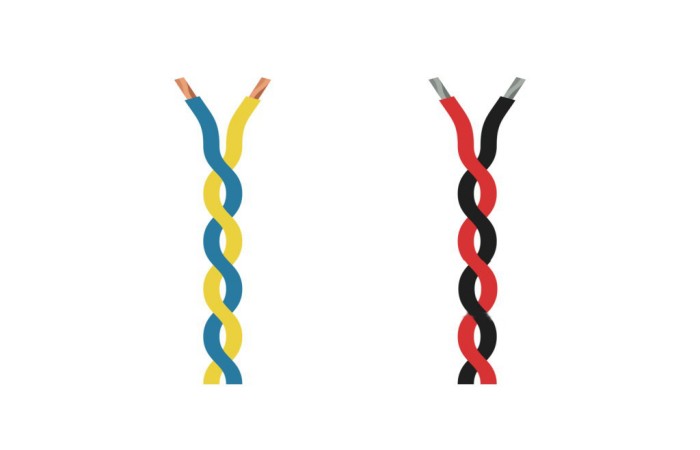

Twisted Pair Conductor

• Two conductors twisted together to minimize electromagnetic interference (EMI).
• Used in communication and data transmission cables.

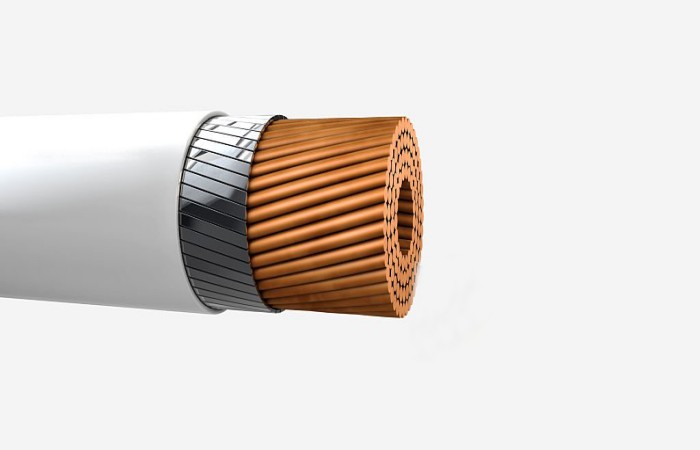

Armored Conductor

• Includes a protective metallic layer to shield against physical damage.
• Used in underground and industrial environments.

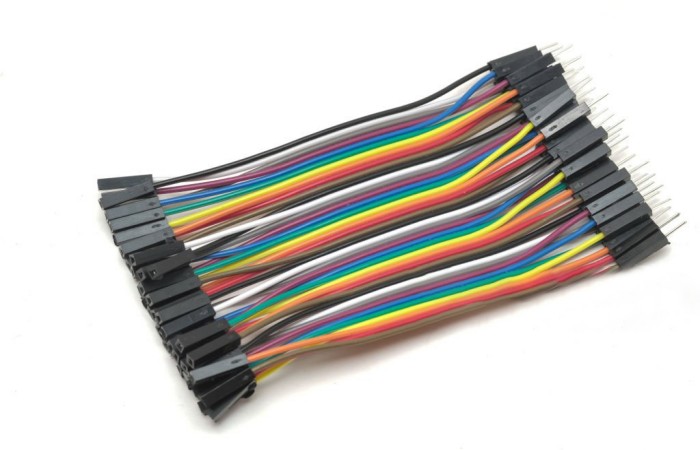

Ribbon Conductor

• Multiple conductors arranged in parallel.
• Used in electronic devices and computing applications.

2.3 Conductor Sizing Standards

• North American Standard (AWG): Measures wire size by gauge number.
• European Standard (mm²): Specifies the cross-sectional area of the conductor.
• Solid vs. Stranded Conductors: Solid wires are single metal strands, while stranded wires consist of multiple smaller wires twisted together for flexibility.

3. Cable Insulation: Protecting the Conductor

3.1 What Is Cable Insulation?

Insulation is a non-conductive material that surrounds the conductor, preventing electrical leakage and ensuring safety.

3.2 Types of Insulation Materials

Thermoplastic Insulation

• Does not undergo chemical changes when heated.
• PVC (Polyvinyl Chloride): The most common thermoplastic insulation, with a maximum operating temperature of 70°C.

Thermosetting Insulation

• Undergoes chemical changes when heated, making it more stable at high temperatures.
• XLPE (Cross-Linked Polyethylene) and EPR (Ethylene Propylene Rubber): Can withstand temperatures up to 90°C, making them suitable for high-power applications.

4. Cable Shielding and Armor: Extra Protection

4.1 What Is Shielding in Electrical Cables?

Shielding is a metallic layer that protects against electromagnetic interference (EMI), ensuring signal integrity.

4.2 When to Use Shielded Cables?

Shielded cables are used in environments with high electrical noise, such as industrial automation, power plants, and telecommunications.

4.3 Common Shielding Methods

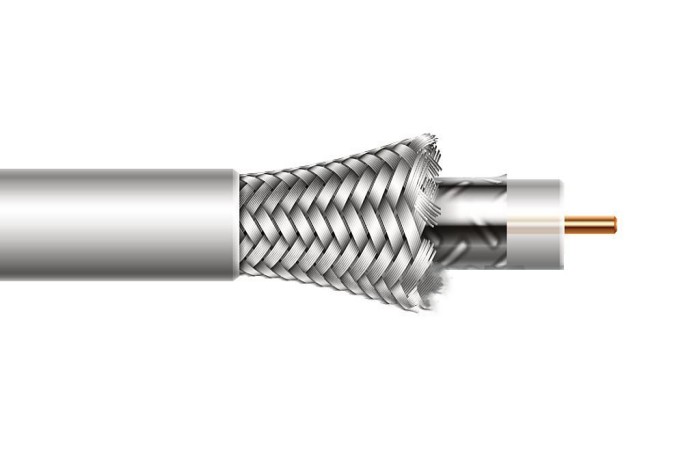

Tin-Plated Copper Braiding

• Provides 80% coverage for strong EMI protection.
• Commonly used in industrial and high-power applications.

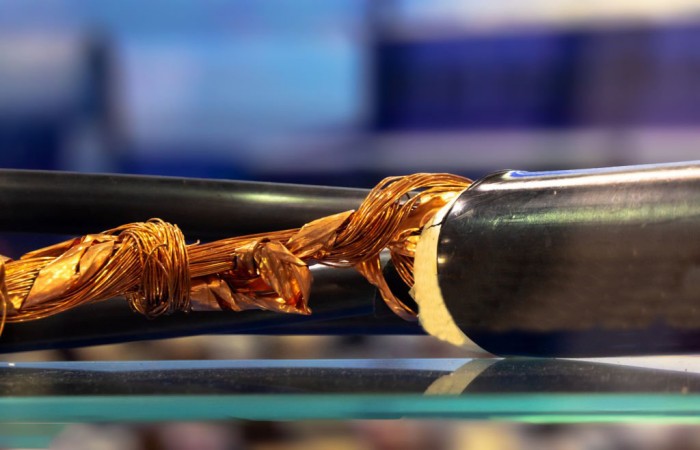

Copper Wire Wrapping

• Allows for flexibility and torsion resistance, making it ideal for robotic and moving applications.

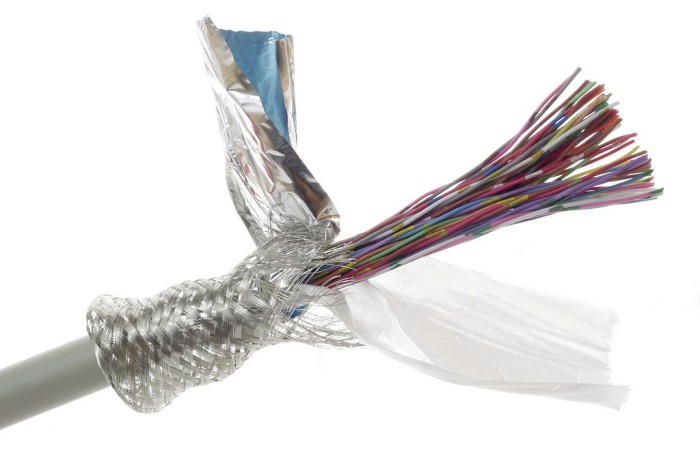

Aluminum-Laminated Plastic Foil

• Effective for high-frequency EMI shielding.
• Used in communication cables and data transmission applications.

5. Cable Outer Sheath: The Final Protective Layer

5.1 Why Is an Outer Sheath Important?

The outer sheath protects the cable from mechanical damage, moisture, chemicals, and extreme temperatures.

5.2 Common Sheathing Materials

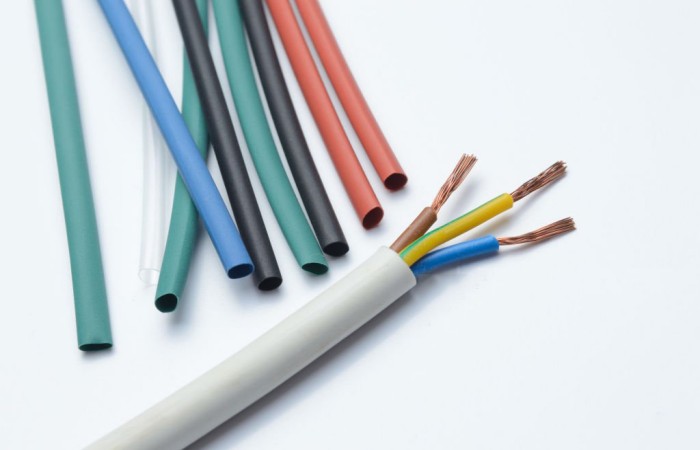

PVC (Polyvinyl Chloride) Sheath

• Cost-effective and widely used.
• Found in household wiring, industrial machinery, and communication cables.

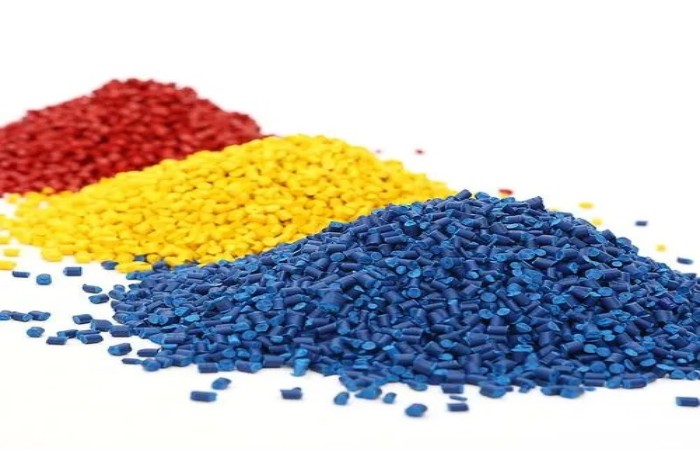

Polyolefin (PO) Sheath

• Halogen-free, flame-retardant, and low-smoke emission.
• Used in public spaces like shopping malls, airports, and universities.

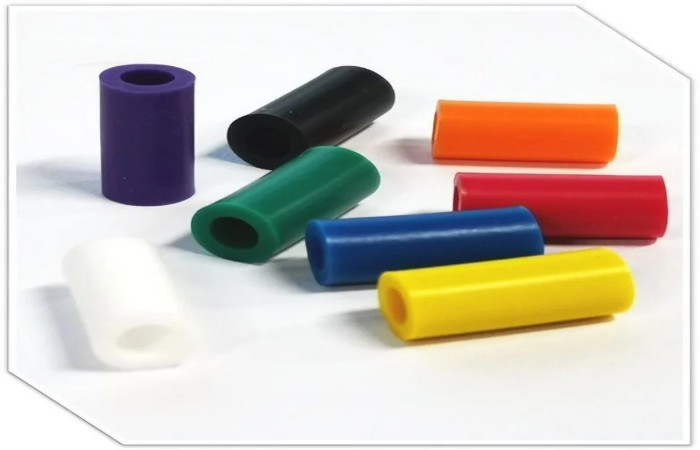

Rubber Sheath

• Offers high flexibility and resistance to extreme environmental conditions.
• Used in construction sites, shipbuilding, and heavy-duty machinery.

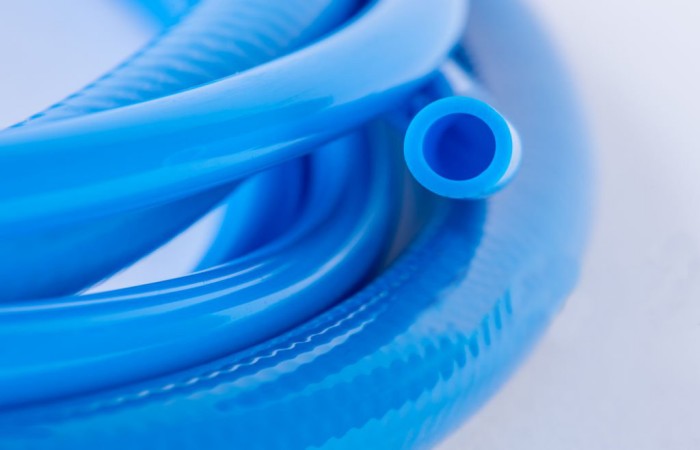

PUR (Polyurethane) Sheath

• Provides excellent mechanical and chemical resistance.
• Used in harsh environments such as offshore applications and heavy industry.

6. Choosing the Right Cable for Your Application

When selecting an electrical cable, consider the following factors:

• Voltage and Current Requirements: Ensure the conductor and insulation can handle the required electrical load.
• Environmental Conditions: Choose a cable with appropriate shielding and outer sheath material for the environment.
• Flexibility Needs: Stranded conductors are ideal for flexible applications, while solid conductors are better for fixed installations.
• Regulatory Compliance: Ensure the cable meets local and international safety standards.

7. Conclusion: Find the Perfect Cable for Your Needs

Understanding the different parts of an electrical cable helps in selecting the right cable for specific applications. Whether you need high conductivity copper cables, flexible rubber cables, or shielded cables for EMI protection, choosing the correct materials ensures efficiency, safety, and durability.

If you need expert advice on selecting the right cable for your project, feel free to contact Danyang Winpower Wire and Cable Mfg Co., Ltd.!
