Factory Supply UL11627 Electric Cable for Battery energy storage Cable electrico para sistema de almacenamiento de energia

Using temperature: -40°C - +90°C

Rated voltage:2000V AC/2000V DC

Pass the test for FT4 of flame retardance

The balding radius not less than five times the cable4Xod,easy to install

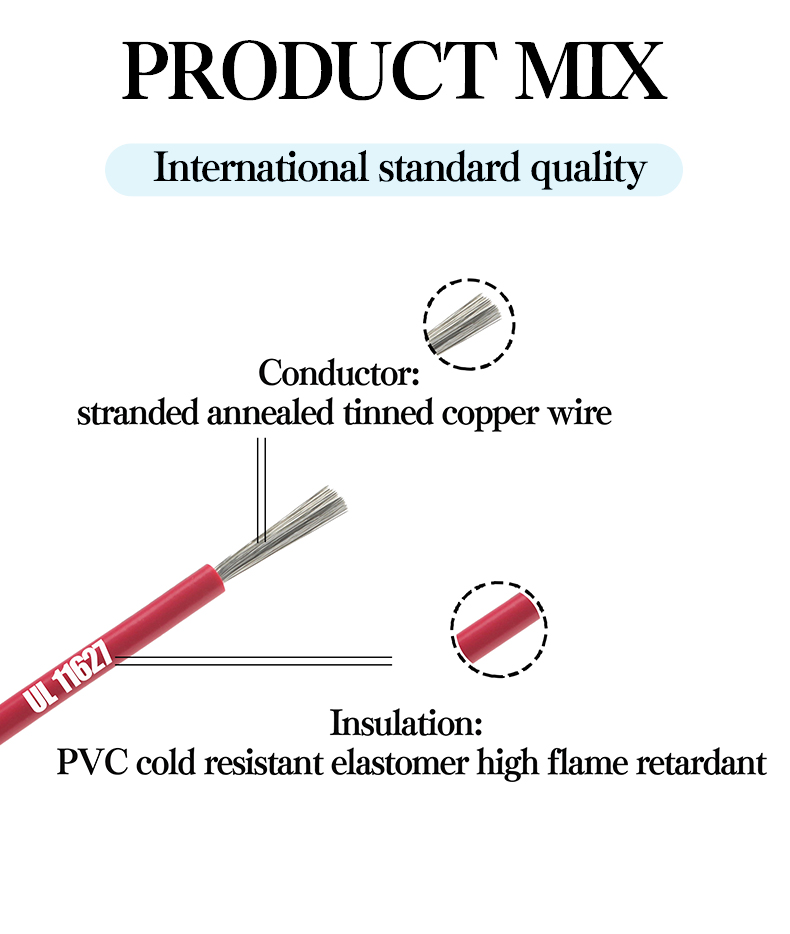

Conductor:Annealed soft tin copper

Insulation:105°C PVC

Used for Battery Energy Storage System,battery connection, connection between battery and shunt box, flexible cable

Send email to us

Product Detail

Product Tags

The connecting cable of UL 11627 energy storage system is made of PVC insulating material. After FT4 test, it has good flame retardancy, convenient installation, acid and alkali resistance, oil resistance, moisture resistance, mildew resistance and environmental protection. Soft, bending-resistant, American standard high-temperature flexible PVC stabilizes the output current, and there is no open circuit or open circuit. Low eccentricity, uniform insulation thickness, ensuring low eccentricity, preventing current from penetrating the skin and facilitating peeling and cutting. This product adopts oxygen-free tin-plated copper wire, which has low resistance and lasting and stable conductivity.

UL 11627 is a connecting cable for energy storage system that has passed the UL product certification of American standard. It is generally widely used in household appliances, providing safe and reliable high-quality products, ensuring the safe output of electricity and providing a safe power output for electrical appliances. Automobile internal equipment provides safe and reliable wire and cable products for all fields of automobile with professional brand strength to ensure the effective output of automobile power. Solar panels, focusing on research and development in high-tech fields, ingeniously create product quality to meet the electricity demand in various fields and ensure the safe operation of the project.

Technical data:

Conductor			Insulation
Conductor Construction(no/mm)	Stranded Dia.(mm)	Conductor Max Resistance AT 20°C(Ω/km)	Nominal Thickness(mm)	Insulation Dia.(mm)
18/0.127TS	0.61	94.2	0.76	2.2
28/0.127TS	0.78	59.4	0.76	2.4
42/0.127TS	0.95	36.7	0.76	2.6
64/0.127TS	1.16	23.2	0.76	2.8
104/0.127TS	1.51	14.6	0.76	3.15
168/0.127TS	1.88	8.96	0.76	3.55
260/0.127TS	2.36	5.64	0.76	4.0
414/0.127TS	3.22	3.546	0.76	4.9
666/0.127TS	4.26	2.23	1.15	6.7
1050/0.127TS	5.35	1.403	1.53	8.5
1666/0.127TS	6.80	0.882	1.53	10.0
2646/0.127TS	9.15	0.5548	1.53	12.0
3332/0.127TS	9.53	0.4268	1.53	13.9
4214/0.127TS	11.10	0.3487	2.04	15.0
5292/0.127TS	12.20	0.2766	2.04	16.5
6784/0.127TS	13.71	0.2193	2.04	18.0
8512/0.127TS	15.70	0.1722	2.04	20.0

Application Scenario:

179bd01721956aed-27ba8b07b1afafab-85431cd3b2bf74775ae1e3578cc32c7d

c8be757d12884aaa-f93851eccc36db17-f0f318b2f3a32931c5a7f87dd1ea532d

179bd01721956aed-36fb719a09c17f81-dec93dd7b774ba478652c973920f88d0

55f9d8a6be868c43-83fb431a8f6b2c77-b2f4654379e5144b14ede1cab0d29b5b

Global Exhibitions:

Company Profile:

DANYANG WINPOWER WIRE&CABLE MFG CO., LTD currently covers an area of 17000m², has 40000m² of modern production plants, 25 production lines, specializing in the production of high-quality new energy cables, energy storage cables, solar cable, EV cable, UL hookup wires, CCC wires, irradiation cross-linked wires, and various customized wires and wire harness processing.
